Tendrils of the Power Event

After I finally beat the dongles into submission, it took a little while to discover that many of my devices did not seem to be operating, but in reality, they were just not responding to verbal commands via Alexa.

Complicating things is that I was also dealing with some WiFi trauma while settling in the new Ubiquiti gear. I was suffering a lot of disconnections and I could not be 100% sure that the WiFi devices that I was trying to control may not have just been switching on and off like a crazy monkey. Short version on that seems to have been overzealous roaming defaults with only two fairly distant APs, but that is a story for that blog.

Once the WiFi was settled down, if not solved, it was obvious that Alexa could definitely see all the devices. I could change a device name and it would be detected, but I still could not control any devices with verbal commands. There were a couple of responses but by far, the most common was that there was no <device> in my profile. Sometimes, I would get that the device was not responding. What I would never get is a device that was controlled.

The timing for this failure is abysmal. My wife just had knee surgery and in preparation for that, I made sure the lamp in the bedroom where she would be staying (she must avoid the dogs for a while) had a smart bulb in it that she could control verbally, except that verbal control wasn’t happening.

After trying no shortage of useless stuff and random restarts of various services, I was getting to be on the right track and had tried removing the skill from Alexa. In Googling about that, I stumbled across a forum posting where someone suggested removing one file and restarting home assistant. I chose instead to rename that one file, just in case. Well, praise Jack Bauer because it worked. All the Alexa stuff works again!

Well, I had to re-re-rename some things back to normal, basically clean up the messes I made troubleshooting. I’ve had to do that a lot lately.

The file in question is /config/.storage/cloud. My old one was 3 times the size of the new one that the system created automatically to replace the missing one. It had several blocks that seemed to be associated with Google devices (of which I have zero, so far as I know) but generally, it was just a bigger file with more stuff in it. I’m sure there was redundancy or perhaps one scrambled line in there.

Now that I can tell Alexa to turn on the Christmas tree and she does, of freakin’ COURSE the rotating base for the tree would stop passing power through to the lights. It is always something.

All That Glitters

My new WiFi is argubly worse than my old WiFi, but I think there is a reason.

I recently completed a pretty major [up|cross]grade of my home LAN. There were two main goals. First is to add some additional wireless VLANs so that I can help isolate my growing network of IoT devices and thus protect them and the rest of my devices from them. Second, and this is admittedly not a super important thing, it would also be nice if I didn’t have to connect to a different SSID between the house and workshop.

As detailed elsewhere, that was a journey of discovery, ending with the eventual replacement of two TP-Link APs and two Cisco switches with new Ubiquiti devices. Between the interopterability and easy of configuration, it was a good, though not particularly cheap, move.

Or so I thought.

A week or so later, it appears that I have a lot of connectivity issues. Once I really noticed it and started looking into it, I think I know what’s happening and at least a good bit of the solution, the full spectrum of which of course involves helping someone at Ubiquiti buy another Bentley.

I put the new APs exactly where the old ones were, but the old ones were perhaps a little more sophisticated, RF-wise. The TP-Link APs had an array of four large antennas and, sadly, physics matters. The UniFi APs look like oversized light switches and simply cannot have the same antenna performance. However, the one in the house seemed to work just fine until I had a compelling reason to move it. I wont go into those details, but it had to move from about the center of the house to one side of the house. As I am typing this post, the UniFi controller reports my WiFi experience as “Good”, rather than excellent, along with everything else here on this, the opposite side of the house from the AP.

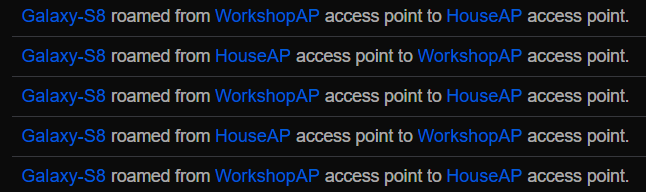

The real issue comes about when, for reasons I have yet to determine, the experience gets enough worse that the connection is lost and the device, most noticeable to me when it is my laptop, sees the other AP, all the way out in the workshop, but with a marginally ok signal, at least compared to the one it just dropped and it roams to that AP. Now that weak signal results in a substantial slowdown and maybe it drops that connection, too. Then it sees the original AP and connects to it again. This vicious cycle continues.

Once I figured out that this seems to be what is happening, I set the workshop AP to lower power. This makes is a less viable alternative to reconnect to and at least stops the toggling. It does not, however, address the actual problem, which is that the new Ubiquiti APs I chose simply don’t have the coverage that the TP-link devices have.

So, I ordered a couple more APs, ceiling mounts this time. I think I can justify a unit in the hallway between the bedrooms and the livingroom and another in the kitchen. If those two provide dense enough coverage in the house, I can deploy the other wall mount in the workshop, to have two out there as well. If needed, however, I can find a place for a third in the house. One has seemed to be enough for the workshop thus far. Everything WiFi out there is within about 20 feet of the AP.

Update: The power setting on the workshop AP has definitely reduced the number of roaming events in the logs. [facepalm] Now they just disconnect instead. [/facepalm]

Bungle in the Dongle

With apologies to Ian Anderson.

Full disclosure. I am still not entirely sure exactly which of the myriad steps finally worked or what order of steps I finally accidentally hit, but the Zigbee and Zwave dongles just came up working again. Furthermore, it’s actually been a few days since that happened, so my memory of it is imperfect as well.

The all critical final step, however, is emblazened in my retinas forever. After doing this SEVERAL times already, removing and adding back the USB devices at the virtual machine level in the Synology NAS, with at least some number of minutes/hours/decades delay seems to let something reset enough that the device is not only detected (which it has been all along) but also works.

Of course, the damage I had done troubleshooting needed to be undone. Some devices had lost their names and almost worked. They had reverted to the default names given when the devices are first interviewed, generally some variation of their brand and model number.

Most of these were pretty easy to figure out, either by being relatively unique (at that point, I had deployed only one Third Reality motion sensor) or by what automation was still associated with the device. Curiously, those automations didn’t work until the name of the device was adjusted. For the afore mentioned motion detector, I had set up a fairly sophisticated timer automation as suggested by Smart Home Junkie and parts of the automation needed to adjusted with new device names as well.

I have all but one or two of those names resolved now, mostly because I just haven’t walked to the doors or plugs in question and verified which was which. Soon.

This power event did inspire me to look into moving Home Assistant over to dedicated hardware. Whether that is really justified depends on whether the advantages of dedicated hardware outweigh the advantages of hosting it as a VM and that really comes down to how it handles USB hardware under unusual conditions like an unplanned power loss.

Raspberry Pi hardware is still very hard to obtain, but I have an Celeron N4100 based fanless PC that is more than adequate to the task. I had a false start (not all the installation methods install identical versions), but did manage to get a suitable Home Assistant image on it and was able to restore a backup of my current configuration. For personal reasons beyond merely being the week of Christmas, I don’t want to tear into the actual move of all these devices to that hardware just this moment. After the holidays, I will revisit it.


You load 16 ports, what do you get?
Another day older and deeper in debt

The 16 port PoE switch arrived today. With the exception of one adoption hiccup, it works really well and finally, all the VLANs are doing (mostly) what they are supposed to do. Now that the layer two works, I do still need to write firewall rules for them.

I configured DHCP to statically set the IP I wanted to use, so the switch came up where I wanted it to and I clicked Adopt and away it went. About 30 minutes later, it was obvious that it wasn’t going to complete that process, so I did a factory reset and had the controller forget it and this time, it completed the adoption process without further drama.

The only configuration I really needed was to make that one port where Starlink pops out on this end into a native VLAN 50. All the other ports would be just trunk ports. I did label a few ports.

I moved four cables over, the link to the workshop, the Starlink/WAN to the router, the LAN to the router and the laptop I was working from. The router had noted the loss of ping from Starlink and has switched to OneSource, so I had to jump in and force it to switch back, but otherwise everything worked perfectly and I moved the rest of the cables over and powered down the Cisco SG200.

I almost forget to test connecting my phone to the IoT WiFi, but I did and it worked, as expected. This is, afterall, one of the reasons I began this whole exercise. Victory dance!

I think the only thing left now is really more of an irritation than an issue.

When I moved the wiring over, I moved most of them over jack for jack, so port 4 happened to have the NAS connected to it and the controller (presumably) discovered it and helpfully labeled it. I decided to move it to port 10 to free up a PoE port, but it apparently is finished discovering and from what I can find thus far, it does not appear to be an end user editable field. That seems very unlikely but, so far, that is what I see so I am stuck with an empty port labeled with something that has been moved to another port which remains unlabeled.

Then again, it’s 2AM.

A Delicate Matter of Power

On the heels of solving one problem comes another.

We had a scary storm nearby a few days ago.

This is just a few miles north of us and it is just a tiny bit of the storm damage. It took power out for our neighborhood, though only for about two hours. That was long enough for the little CyberPower UPS feeding my network stuff to run down. It was also the first time I have had something hooked up back there that was apparently sensitive to losing power, namely my Home Assistant VM hosted on a Synology NAS.

Before I get into the rest of this story, I’ll say that my UPS does have a USB port, but it is not specifically listed on Synology’s compatibility page. Still, I will secure the proper cable and give it a try. Doing an orderly shutdown of the NAS might have avoided this whole thing. Or not; I suppose that depends on what it takes to finally fix it.

After we got power back, the Home Assistant VM would not finish booting up.

Note that it had been waiting for nearly 6 minutes for whatever it was holding up for. Deep digging seemed to indicate that a database file for something may have gotten corrupted, meta.db. About the time I was figuring this out, I also remembered that I have the Synology doing nightly snapshot backups of this VM!

Though just this moment I don’t remember why, I elected to restore the snapshot from Dec 11. I have also since then locked that snapshot so that it won’t be rolled out. I may need it again.

That process at least got Home Assistant booted up and usable, though it took me a while realize that the Zigbee controller was not up. Zwave was up and working, which was a relief after the previous debacle involving it. I needn’t have worried, though. The attempts to restore Zigbee operation would soon kill ZWave, too.

The details of both seem to indicate that the software can’t find the hardware. Almost surprisingly, however, the hardware is there.

The kernel sees them. So, why can’t Home Assistant?

My first concern is Zigbee because I have more devices on Zigbee and they include the lights in the back yard, used frequently for letting the doggies out. The oldest of these doggies has enough trouble finding the door in the daytime.

For experimental purposes, I also tried another snapshot option wherein you can configure a new VM from one of these snapshot backups. Interestingly, it generates a new bogus MAC address, so DHCP gives the new instance a new IP address. That was slightly unhandy, but easy to fix. The oldest December snapshot, from the 4th, behaved exactly the same, which leads me to believe that this is probably not a filesystem issue, so I have put back the December 11 snapshot and have been working with it.

I tried something kind of radical and deleted the Zigbee Home Automation (ZHA) integration. Home Assistant discovers the dongle like a newly installed piece of hardware:

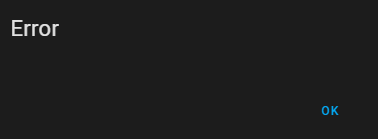

Unfortunately, it returns an unknown error upon attempting to configure it.

If I instead choose to Add Integration and search for Zigbee, I get these options:

The first option is the same as trying to configure the new hardware. The second option complains that Zigbee integration is not yet set up, but gives an option to proceed to set it up:

It proceeded to look very normal, like it was going to work:

Then, it ground to a halt.

There is something new here, though. It looks like it has the same port in there twice, neither working.

If I click on either of those, I get the same ‘failed to set up/check logs’ message as always, so insanity.

To break the chain, I have ordered Sonoff’s *other* Zigbee device, based on the Silicon Labs chipset. It would seem they had cause to add to the Texas Instruments architecture, whether it was to help assure a diverse supply chain or in pursuit (or retreat) of some features. I hope to know soon.

WiFi Elevation

Act I: Somewhere deep in my first catchup post in this blog, I related that I had acquired a couple of nice TPLink wireless routers with the intent to mesh them together so that the house and workshop would be on the same SSID, only to discover that this particular router apparently cannot be a mesh client in that situation. Further, none of the mesh clients in that product line support ethernet backhaul, which is pretty much required for this specific situation.

Act II: Enter home automation and a sudden propagation of WiFi IoT devices. I am not in any real danger of running out of IPs in my main LAN. It would also be trivial to just expand it if I were; it is all RFC1918 address space, with the exception of dealing with the work VPN and the RFC1918 subnets routed there. However, best practices would have the IoT stuff separated from the rest of the network in case they get somehow compromised on the internet and many of the home automation devices need no internet access at all.

With these two related goals in mind, WiFi roaming and multiple WiFi networks, I shopped around and decided that a couple of Ubiquiti APs would serve this need. Between Ubiquiti being affected by chip shortages like everyone else and a ceiling mount not being my first choice for various reasons, I got two in-wall APs as the best compromise that was also not too expensive.

While they were enroute, I knew that I would need the controller console software running somewhere. Ubiquiti marketing really makes it sound like one of their hardware hosts is the only option, one of the Dream Machine or Cloud Key devices, but they have downloadable software that can run on a variety of OS platforms. You don’t really need the software except for initial setup unless you want to track statistics, so it can be run as needed on, for example, a Windows PC.

Another option is to run it as a Docker container in your NAS.

At one time, not that many years ago, I was an anti-VM snob. I was a hardware purist. I have pretty much gotten over that. There is almost no computer that is busy enough to justify doing only one task, especially one server task. Even modest hardware spends most of it’s time waiting for something to do. My Synology DS220+ is arguably pretty modest hardware and I have it recording six IP cameras, hosting my home automation leviathan and now its also the controller for my small collection of Ubiquiti networking components. Oh yeah, it’s still a NAS, too, backing up two computers. And it’s barely clicking over most of the time.

I digress.

There was really only one issue I had bringing them up on this controller. The APs need DHCP option 43 in order to find this controller and that took a bit of research, both in how to format the info and how to implement that in pfSense. It’s not difficult, but it did take some Googling to find the details.

The ’01:04′ tells the AP that the following info is the controller IP, then the next 4 octets are just the IP of the controller in hexadecimal format, in this case.

The related DHCP issue wasn’t super critical, but I wanted to assign static IPs for the APs. I neglected to set the static mapping before I plugged them in, so between the option 43 stuff and changing IPs, I had to have the controller ‘forget’ them, then factory reset them a couple of times to get things settled in.

Interestingly, I had not noticed until I pasted this image that the WorkshopAP, currently in the same room with the HouseAP while we wait for a PoE switch to arrive for deployment in the workshop, for some reason connected via WiFi instead of the ethernet by which it is powered. I will look into that, but I don’t expect that to be a long term issue; that AP will be elsewhere soon.

Meanwhile, I have created my VLANs, subnets and WiFi networks for the redesign. At the time I wrote that sentence, I needed only to update the VLAN configuration in the switch for everything to get talkin’. Little did I know…

As mentioned in the Starlink saga, VLANs are not a proprietary thing, but as I discovered, not all engineering teams approach them the same way or to the same degree. To recap that experience, the TPLink switches would let me segment ports within a switch, essentially dividing it up into smaller switches, but they did not pass that VLAN tagging information on, so no connected switch was aware of any of those VLANs. I had a somewhat more sophisticated Cisco switch on hand, one that as a bonus also provided PoE for my cameras, so I found it a playmate to put in the workshop and I was able to do the VLAN task I needed in order to backhaul Starlink from the workshop to the house while keeping it isolated from the general LAN.

In this diagram, the blue lines are VLAN50, the Starlink backhaul and the green lines are VLAN1, the main LAN. The switches are able to trunk both VLANs over a connection, so whether it was a piece of wire or a couple of wireless devices, the VLAN tagging was preserved.

With the new APs, the task is similar. I want to be able to run multiple isolated WiFi networks, so it would seem to be the same task, but I could not wrench the Cisco SG200 to do the same thing between ports on the same switch after days of trying. On the other hand, I also learned that one weird trick about VLANs and pfSense on the Netgate 1100 appliance.

The path has not been a smooth one, either. During the last several days, I have lost access to the switch multiple times and to the router once. With the switch, sometimes a power cycle was in order, sometimes just moving to a port I had not accidentally lobotomized. For the router, I was able to connect to it’s serial port and restore a previously saved working configuration.

One important and telling troubleshooting step was to monitor DHCP requests with Wireshark. In that process, I could definitely see the discover messages from the AP hitting the switch port it was connected to, but they were not coming back out the switch port to the router. This largely cemented the issue as being the switch not really trunking VLANs as expected.

The solution, as is often the case, has turned out to not be free. I knew I would need a PoE switch switch for the AP in the workshop and since (I guess?) I am kinda slowly moving to the Ubiquiti ecosystem, I ordered an 8 port switch to put out there. I started doing all this VLAN stuff while it was enroute. Somewhere along the way I wondered, since all the UniFi YouTube videos depict this as a largely click and go process, if the new switch would handle it as expected.

Yes. Yes, it does.

When the switch arrived, I first did all the adoption stuff and got it stable. Leaving it with all ports set to the “All” port profile, which is the default and expected to carry all VLANs, I plugged the USW-Lite-8-PoE switch in line between my Cisco switch and the LAN port on the pfSense router, with one of the APs also on the Ubiquiti switch. The VLAN 1 WiFi came up immediately, but then, it had been working all along. I found one thing (the weird VLAN tagging thing for the internal switch in the Netgate 1100 appliance mentioned above) was not quite right due to all the desperate experimentation I had been doing, but once that was corrected, I was able to connect to the IoT WiFi with my phone and get an IP address. It was glorious. I may have peed a little.

I removed the Ubiquiti switch and put the AP back on the Cisco, just to verify that it would fail again, that I had not just finally gotten all the configurations correct, and it definitely stopped working. So, lesson learned: for all it’s other strengths, the SG200-26P just doesn’t handle port to port VLAN trunking, at least not as the AP needs it to deploy multiple WiFi networks.

I then ordered a USW-Lite-16-PoE to replace the SG200-26P. It should be here in a couple of days.

Meanwhile, I configured a port on the USW-Lite-8-PoE for untagged VLAN50 and moved it out to the workshop. It plugged in and Starlink came up working perfectly. The Cisco again handles this sort of VLAN over a trunk just fine, and it doesn’t care that it’s partner switch is not a Cisco switch.

Importantly, the AP out there came up on the main VLAN and I can roam on that same WiFi network between the house and workshop; I no longer have to swap between HippyHollow and FlyingDog.

For nostalgic reasons, I will miss FlyingDog. It was a specifically chosen name for the network. I know! I will rename the AP!! Actually, I will rename both APs to what their networks used to be called. I are silly.

Not surprisingly, though, the IoT WiFi doesn’t work from out there, further evidence that the Cisco switch just isn’t passing those VLANs to the router. I am reasonably confident that when the USW-Lite-16-PoE is in place, the various alternate WiFi networks will work from everywhere.

Of course, then I have to start moving all the IoT devices to that network…
