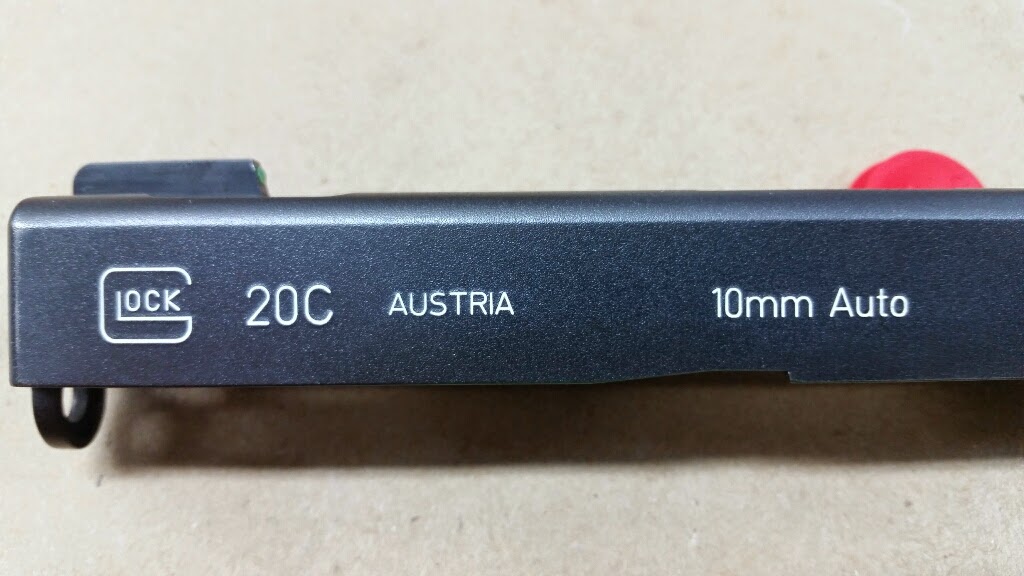

Though it is a fairly common “mod”, I had not taken the time to paint fill the imprinted lettering on my magazines and the slide of the pistol.
Pretty happy with the added contrast. It doesn’t help it shoot any better, but it was a nice project that I could do in a couple of hours with a bonus of spending time with my Love in the craftroom.
As an aside, I noticed while doing this work that the screw holding the front sight is loose. It will be an easy enough fix, removing the screw and sight, cleaning with acetone and reassembling with Locktite.
There are many descriptions on the web as to the lettering procedure. In my case, I first cleaned the slide and magazines with acetone. Next, I used plain ol’ Testors model white enamel and a size 0 detail round brush. Technically, I was globbing it on to fill all the lines, but I tried to keep the glob in the lines and the part outside the lines as thin as reasonably possible. I filled all the lettering except for #10, which I went back and did in red. I wish I’d had a brighter red, maybe a fluorescent red or orange, even green. The point is that #10 is also filled but in another color. In IDPA shooting, magazines in my divisions are typically loaded to 10 rounds and since I am corrected to slightly farsighted with my contact lenses, it is hard to make out even the higher contrast lettering to read the actual number. Making the 10 another color makes it easier to check the magazine capacity.
Once all the paint was well dried came the somewhat tedious bit. I used the Testors thinner on bits of paper towel. It took a couple of magazines to refine the technique, but what seemed to work well was to put a drop of thinner on a small piece of paper towel and quickly rub it over a small area of lettering, checking between each stroke. When only the desired coloring is left, buff the area with a dry paper towel. This was the fastest way and required the least retouching cleanup. The thinner needs to be really light on the towel. Too much on the towel and it wets the paint too much and too much is removed from the lettering. I did all the white then came back to the red with fresh towels to keep the white from becoming kind of pink.
I pretty pleased with how they turned out.
In a previous post, I noted that I had a magazine that did not easily drop clear at reload time. Since I had numbered the magazines, I knew which one it was. While I was preparing the magazines, I had them all in one place and wanted to compare this troublemaker with it’s stablemates. I found a couple of differences that I am sure are documented online somewhere else, but here goes….
Since the empty magazine wasn’t dropping well when released, I first wanted to compare the latching notch. It turns out that there was a pretty big difference immediately visible. The magazine on the right is the one that doesn’t drop well.
In further digging, I noticed a difference in the followers as well. The one marked with a 2 is the one that doesn’t drop well. Due to the shadow, it’s hare to see, but the top magazine follower has a simple ’10’ on it while the bottom one has ’10 mm’ completely obscured by the shadow.
Referring back to the pic above of all the magazines, note that the two on the left are slightly different in the placement of the Glock logo. Yes, I have two magazines of this different model. In the original numbering order, these were magazines 0 and 2. The first was easy to remove from the magazine order. I did all other shooting with magazines 1, 2 and 3. However, I have so rarely had to drop mag #2 on the clock that I haven’t noticed if it also had trouble dropping clear.
Partly to address this issue and partly because I just have them, I decided to install the six magazine extension floor plates that I got in the box of goodies that included, among other things, most of these magazines. The previous owner found that, with all other equipment on his pistol, these extension floor plates in stock condition made the overall weight of the pistol perilously close to overweight for IDPA. He drilled out some material from the inside of the plates to reduce the weight. I hope my combination of parts fits under the wire because the added weight to the magazine makes all six thus equipped drop out of the pistol nicely. I have put them on both of the ‘odd’ magazines for the acid test.
The pistol is a close but passing fit in the IDPA box with the extensions.
