Yellow Trike Work

The rains came just as I got home.

I spent the time inside putting the end on the throttle cable and assembling the throttle, well, assembly. I have just about decided that building my own cables, especially custom cables, is just way less frustrating than trying to shop for one that will work, so long as you have all the parts.

I got all my cable parts online from Flanders Motorcycle Accessories. Knowing the size cable, sheath and ends you need will help a lot. Use your digital caliper a lot when or you will be destined to either not have the right parts or order a bunch of stuff you don’t need to get, hoping you get the right one. Even so, it takes a while to get good at remembering all the separate parts you really should order, like adjusters and boots and such. If I were doing full time building, I would try to stock a lot of parts to sort of standardize on, then I could build them as needed and just reorder stock instead of designing every element of a cable before ordering the parts for just that cable. I digress.

I’d hoped on being able to keep the foot throttle (easier for highway cruising) but I didn’t have a good way to attach both devices to the carburetor. I have a couple of ideas that I can try later, but for now I’ll just use a hand throttle only.

The throttle lever and spring on the carburetor is designed for foot-type forces and thus is hard to turn with the hand throttle. I will first try lightening the spring. If that doesn’t work, I will reconfigure the throttle for better leverage. There is more than enough travel in the cable to allow for some adjustment room there.

After the throttle, I did some electrical reconnaissance. The dashboard switch that we were lead to believe was the turn signals, is in fact the headlight switch. The headlight works! All we had to do was turn it on.

The turn signal switch is an after market affair kludged into place on the left hand control, where the stock one might have been many years ago. The baton for this switch is broken off, which is why I never noticed it before. By shorting the proper terminals together, I verified that the turn signals do indeed work.

We ordered a left hand control switch from a local shop, which is due in this afternoon. Assuming the weather holds, I should be able to install the switch tonight then take the trike down for inspection tomorrow and it will be completely street legal!

I should probably bleed the clutch to make it easier to drive, though… ๐Ÿ™‚

Well, there is one caveat. The seat is out for recovering, so for the inspection, I will probably need to attach a temporary seat, rather than just sit it there. Our inspector is as lenient as one could hope, but he’s not actually corrupt!

Nearly ready for paint

I called Bondo to ask what about painting Buzz with a single color and while I had him on the phone, we talked about the fenders and what he’s having to do to make them pretty. Lots of filler, unfortunately, as I had expected. In any case, it’s nearly ready for primer, which means the whole thing is nearly ready for paint…

As an added (though welcome) distraction, my wife just bought a home built VW trike. It’s already road worthy with the exception of troubleshooting the turn signals and headlight. Get those done and get it inspected and it could be driven anytime.

Well, there is a major design flaw that makes it VERY difficult to drive the trike on an incline. The placement of the brake pedal and accelerator makes it impossible to feather the throttle to gently climb an incline, you know, like our driveway. These engines are notorious for a low torque idle (at least in my experience), so I can’t feather the clutch without feathering the throttle and I can’t get to the throttle without releasing the brake.

She would rather have a hand throttle anyway, though there’s no reason we can’t have both.

It’s been hot and I’ve been busy

… but not busy on my trike.

However, stuff is happening.

I spoke with Bondo Joe a week or so ago. He’s almost ready to paint the body. There were a LOT of stress cracks and pinholes and general agedness to contend with. I mentioned that I was planning on putting on some fenders and he has asked to have them so that he can paint them to match, which means I need to get that together right away!

I tried standard trailer fenders (from Northern Tool, though you can get them other places) but the widest they have is 9″ and my tires are 11″ wide, so it didn’t look right.

After reviewing various methods of widening the fenders, I elected to do it by purchasing a third fender to use as donor material. I split that fender down the center, leaving two 4-1/2″ half fenders. I split one of the other fenders at 7″ then welded the 7″ and 4-1/2″ pieces to form a 11-1/2″ fender. Blending this weld is turning out to be a lot more work than I had expected, but a couple more evenings and I’ll have the fenders ready to deliver.

Well, there is one thing that must be done first. The fender mount on the left side was bent in the old collision. I need to straighten this bracket, which will be easy if I can get enough heat on the bends. I may not have enough torch to do that, so I may need to get some help with that. I need this repaired so I can have the fender drilled before it goes to Joe. If he puts any artwork ont the fenders, as opposed to single color, he’ll know where the holes are going to be and can accomodate them.

hmmmmmm

Or, I may be able to secure mounting brackets on the bottom of the fenders to leave the tops pristine….

We’ll see…

Wires, wires, everywhere!

Crankin’, but not runnin’…

I have the engine wired up. It took several days, mostly because it was hard to dedicate much time to it.

After much waffling, I finally decided to put the fuse block on the frame downtube. It will be more accessible for troubleshooting there. Almost everywhere else within reach would be exposed engine heat.

I welded two tabs to the pipe and drilled them to fit the mounting holes in the fuse block. The fuses face downward so they will be visible from underneath once the body is back on.

For weeks, I’ve been spending time trying to draw up a wiring diagram, but I’ve started it over repeatedly. Just can’t seem to get it together. I decided to kind of wire and draw simultaneously, based on a checklist of things that need wiring. For example, I need to wire everything on the engine that needs straight 12V when the key is on, so I list them: electric choke, fuel cuttoff solenoid, coil (through ballast resistor).

On the checklist, I set the wire colors, based arbitrarily on some concepts in my mind. For example, red is almost universally 12V power, but I like to think of things that always have power should be red. What’s reddish, to indicate 12V, but not always? Ok, orange. ๐Ÿ™‚

So, I cut a piece of orange wire long enough to go from the choke to the fuel solenoid. put my nice quick disconnect spade connector on one end, cut another orange wire for solenoid to the ballast resistor, then put both of those in a spade connector for the solenoid and a ring connector on the resistor end of that one. Then run a wire from there to the fuse block, cut to length, put another ring on the resistor end and for now leave the other end a little long, but cut it.

There is a stop-run switch on the handlebar, so I guess my orange wire should extend up there before plugging in to the fusebox. Of course, that requires that I decode the wiring to the switches and connectorize it. The connector itself takes a while, but when it’s all wired up and ready to go, I meter it all to make sure they all work and then I finally draw out that bit of the diagram, remembering to include all the connections and connectors. I also try to draw the parts in a rough representation of where they are on the trike.

Ok, next wire.

So, you see, it takes a while.

The payoff is that by dedicating my thoughts and wiring retentiveness to the job one circuit at a time, with a big picture in mind, I think the trike will be well wired, reliable and easier to troubleshoot when something does crop up.

In the beginning…

I tend to go on. You have been warned.

For now, I will skip much of the detail about how I came to seek and acquire my VW trike, but some details will be handy at some point in the future.

I found this on a CraigsList ad in Houston. We went to see it on a Sunday and I returned the following Saturday to pay for it and pick it up.

The previous owner found it in the back lot of a pawn shop in this condition. I believe he said it had been there for 8 years. He had it himself for several years. He had another project he wanted to take on and he needed the garage back.

While he had it, he repaired a big crack in the fiberglass, shot a coat of primer on it, made the gas tank removable, put a good 1600 dual port engine on it and changed the tires out.

There was a battery and enough wiring for the engine to start and run, but that was all. The alternator was not even connected. I’m a wire guy, so I kinda like that I have a blank canvas for the wiring.

In short, as I received it, it only needed all the wiring, brakes and a front tire to be road worthy. Not pretty, but road worthy.

The brakes were not difficult to repair. All I needed was everything but the drums. Luckily for me, that was still a pretty short list. Master cylinder, switch, 5 steel lines, 2 flex lines, two slave cylinders, a handful of springs and clips and 4 cans of brake cleaner. He stops now.

With brakes in place, I was ready to take a clandestine trip around the neighborhood. I had trouble keeping it in gear, but the thing worked!

The trike ended up at the pawn shop after a collision. The PO did a pretty decent job of repairing the fiberglass damage, but there were other things that, in analysis, was actually collision damage. The majority of it had to do with the shifter and things attached to it. The shifter itself was fine, but the mount was cracked, one of the linkages was bent and the nose cone on the transmission had a really nasty hole and crack on it.

To replace the nose cone, I should have had to remove the transaxle, but the mounts, especially the front one, were so shot that the transaxle could move enough to let to do that procedure with it still in the frame! The shift linkage is joined with rachet U-joints. The shift shaft in the nose cone was welded directly to one of these U-joints. I had to cut it short enough that the shaft could clear the bushing in the nose cone, but keep it as long as possible for reconnecting to the shift linkage.

All that helped shifting, but with the motor mounts set to extra sloppy, it was still hard to put/keep it in gear. I bought new urethane mounts that have only in the past week or so been installed. I’m looking forward to another ride to see if that finally fixes the shifting.

The motor mounts are just one of the items that I’ve been gathering since about Thanksgiving 2008 to be installed on the trike. We’re getting close to our vacation and it would be very cool to take the trikes somewhere for vacation, so for the last month or so, I’ve done a lot of work on the thing.

We attended a BTW benefit last fall and my most lovely and generous wife bid on and won a $1000 paint job for a trike or bike for substantially less than $1000. We wanted to make sure we had the bike titled before we sent the body off to Bondo Joe. I got that stuff out of the way and got the body to the paintshop a couple of weeks ago.

That evening, I received this email:

I’ve been back in the shop looking at your trike body and have come up with some ideas. What I need is some pics of the bike. You told me to do whatever to it so you must of talked to someone that knows me, so when I was looking at it a lot of things came into my twisted mind and I need to know if you like dragons because I came up with something that I think would look really cool. The way I see it a wizard rides a dragon. Thatโ€™s all I’m going to tell you about what I’d like to do. If I do this to it nobody will ever call it the Enterprise again. It will be known as the dragon bike. And It will be purple. Do you want to ride a dragon? If not I’ll think of something else to do.

I definitely like dragons, so I’m pretty excited to see what he comes up with.

In the mean time, I had lots of shiny bits to install, like chrome tins and polished aluminum valve covers. I painted a lot of engine parts using Krylon’s X-Metal system. It’s basically a decently high temperature candy color paint intended to lend an anodized look to polished metal. They also have a silver base coat called “metal converter” for surfaces that are not shiny metal. In my case, I used the converter because all the stuff I wanted to make colorful were themselves different colors, so I ended up using it on everything. Everything includes the intake manifolds, alternator and distributor. Doesn’t sound like much when listed like that, but it looks pretty nice. I used the converter silver alone on the engine block.

Since that pic was taken, I have put the plug wires back on, mounted the ignition coil and ballast resistor (out of sight) and welded on tabs to mount the fuse block to. All I have left to do is wire everything. Everything.

I have 100′ each of 10 colors of wire, weather tight connectors, 8 circuit fuse block and a wiring diagram that is about 90% complete. I hope to have the chassis wired and ready to add lights, gauges and switches when the body comes back from Bondo Joe.

Hey, remember me?

Buzz is dusty, having been left essentially untouched since my last update. We have a trike vacation coming up and I’ve been semi-diligently working on the VW trike. Of course, I’m always planning and plotting to squirt the VW, too, but there’s not time before the upcoming trip. I imagine it will be mid-June before I can get back to tuning on Buzz.

After using the borrowed MIG to fix a couple of things and to make a sissybar for my wife’s new Nightster, I had to return the welder, so I shopped around and bought one of my own. Granted, it’s a Chinese cheapy from Harbor Freight, but thus far, it has done everything I’ve needed it to do.

As mentioned back in late January, I purchased a cylinder head from the same engine as Buzz, the intent being to use it as a jig for the manufacture of a new manifold. To that end, I’ve been practicing a bit of tube-on-tube welding. I imagine the manifold for the VW will need a bit of that as well.

I have a pretty good idea in my head how I will make Buzz’s manifold, using EMT conduit sizes. Note to self: remove all zinc galvanzing before you weld on that stuff.

FabMonster in Training



I’ve been away for a work project for a couple of weeks, so no tangible work on Buzz during that time.

As is often the case, however, I’m always working on something, usually at least related.

I have borrowed a decent MIG welder and I am learning to use it. I have not yet done anything practical, but I have been practicing skills I will need to make my next manifold, whatever engine it goes on. It’s pretty easy to weld a nice bead so long as you don’t have to stop and restart. It gets ugly then. Welding a piece of pipe to a piece of flat, for example; I can only keep the wire feeding in at the proper angle for about 75 degrees around the pipe until I have to stop and reposition the piece. Then when I restart the weld, she’s not so pretty. I’m sure its just a matter of practice. I’m running out of practice pipe, though!

Assuming I can muster adequate skill to assemble a thin steel manifold, will I really need to? I have not yet spent the necessary time to see if connecting the vacuum line to the fuel pressure regulator will bring the fuel mixture into line. If so, I will instead need to make an adapter to let me put the twin throttle body on a Weber/Delorto manifold for the VW instead. That will essentially be a plate with adapter rings that will either fit around the outside of the TB and seal with an o-ring, or more likely, connect with a short length of hose and two clamps, kind of like on Buzz. The second also gives better physical support, so that’s probably how I’ll end up doing it.

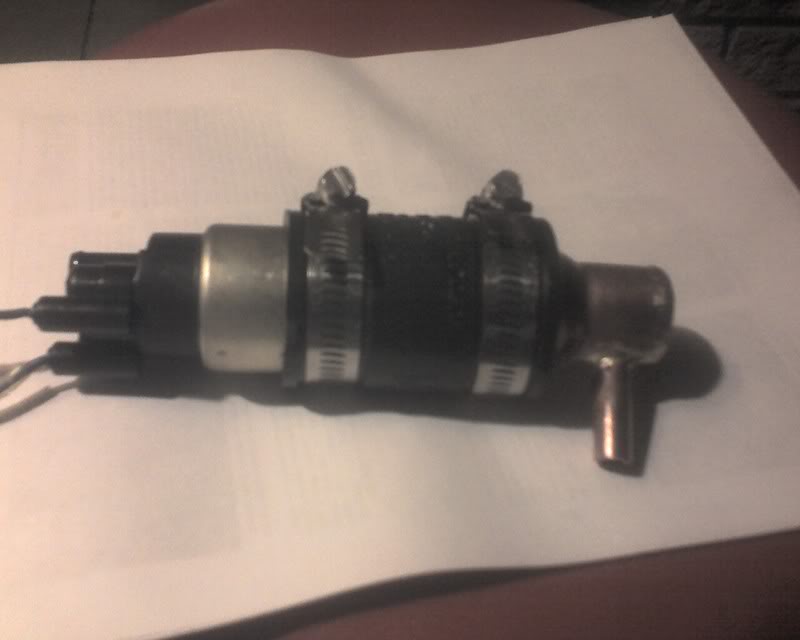

Yesterday and today have been pretty riding days. At lunch yesterday, I got Buzz started with the intent of taking him to and from work, but he was idling funny. I checked and fuel pressure was a tad over 80 PSI. I’ve not seen that kind of pressure except when I had the regulator return line pinched off accidentally, which you may recall burst the pressure relief valve on the old pump. Hopefully, this one has not suffered the same fate. I verified that the return valve is open, but otherwise didn’t have much time for troubleshooting. Perhaps I can take another look tonight.

A little light reading…

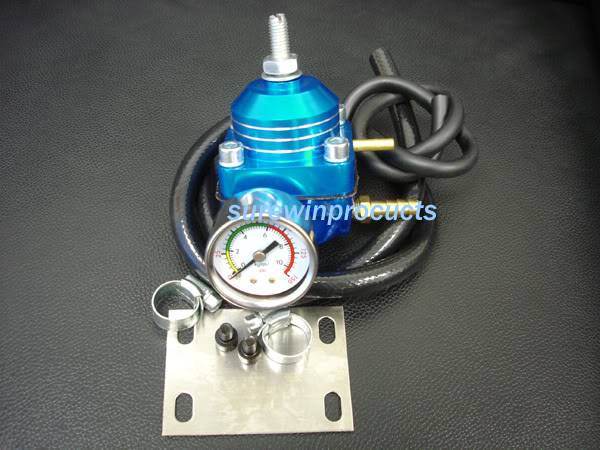

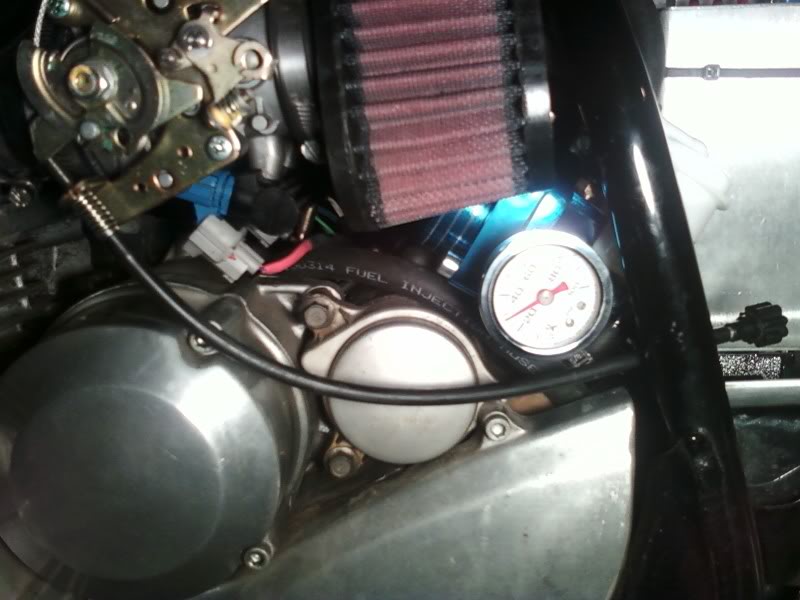

I knew that the purpose of a vacuum line on the fuel pressure regulator was to help vary fuel pressure according to manifold vacuum. I just didn’t realize that it’s actually pretty important to do that.

Quoted directly from the MegaManual:

The vacuum referenced fuel pressure regulator is essential. It provides constant pressure differential between fuel at injector nozzle and manifold air pressure [port EFI] or atmospheric pressure [TBI]. This makes the injected fuel quantity solely a function of the injector open time.

If you were to ‘cap off’ the manifold vacuum port on the fuel pressure regulator, you are reducing the dynamic range of the injectors. This means you will need lower pulse widths at [idle] (giving less control over idle mixtures) and lower flow under boost (restricting the maximum horsepower).

So, in general, for port injectors, have the fuel pressure regulator connected to the manifold vacuum is a good thing. There is very little reason not to do it (though some have argued against it for individual runner port EFI set-ups).

Ok, ok, hint taken, especially paragraph two. It will be very easy to hook up, assuming there is no pressing reason not to allow the vacuum from just one cylinder to operate the regulator. hmmmm Logistically, it would work really well to T off the MAP signal; perhaps the regulator would serve as an accidental vacuum accumulator and smooth out MAP repsonse… In any case, I hope to have some wrench time on Buzz this weekend. I also very much hope to have some *riding* time on Buzz this weekend.

Speaking of fuel, I forgot and left the fuel valves on again. I’ve been out in the driveway at least briefly most nights this week except last night and saw nothing out of place. Low and behold, tonight I go out and find a big puddle of gasoline under Buzz. Of course, it’s dark and I had no time to troubleshoot, so I just turned the valves off. Next time I go out there, there will be no leak and no evidence of a leak, thus nothing to fix.

In other light reading, I am trying to find specs on this twin TB. As sold, it was described as being for a Kawasaki KFX450R ATV, but everything I can find on the KFX450 indicates that it is a single. After looking around in the parts diagrams on Kawasaki’s website, I’m pretty sure these are from either a Ninja 650R or a Versys, both powered by a fuel injected 650cc parallel twin. I haven’t been able to match the part number on the box (16163-0078) but the illustration of 16163-0084 is identical. Furthermore, looking up parts for the KFX450R (as the box was marked in Sharpie and as the eBay auction described it) reveals a single throttle body, not a twin.

I suppose whatever the throttle body was intended to fit, it changes my conditions very little. I still need to find out what the injector ratings are. Googling for the part numbers on the injectors (ETA287 on one side, 2870581 on the other) doesn’t find them. I also will still need to build a manifold for it.

On that subject, the intakes on the heads are so nearly exactly 1″ ID that it will have to do. That end of the TB is 2.2″ and Buzz’s current TB assembly fits in 5.25 inches between the cylinder head and the base of the filters, , not including the filters. Since two TBs will fit between the frame pieces that currently limit the space available to four TBs, I may be able to stretch that distance a bit. Also, these TBs may be a a quarter inch or so shorter than the ones currently installed, but it’s hard to accurately measure with them installed.

But basically, I will be building two kinda short blocky Y (really more like a J with a crossbar; I need to draw it out and scan it), with a 2.2″ pipe on one end and two 1″ pipes on the other. The engine ends will have flanges and the TB ends will hopefully have an O-ring friendly pipe. The two J/Y things will be joined in the center for both rigidity and to facilitate a bracket to attach the TBs to. Because of TB and cylinder spacing, there will be an almost straight shot from the TB into #2 and a short horizontal runner to #1; likewise with #3 and #4. It’s pretty clear in my head, so hopefully my fabrication skills will keep up.

More ideally, there would be two equal length runners from each TB to it’s cylinders. I could probably accomplish this by feeding #1 and #3 from one TB and #2 and #4 from the other. Again, I’ll have to draw it out and see, and accurate drawings will be much easier the the arrival of the spare cylinder head.

Finally, the simplest manifold may be to simply take a 2″ or so pipe about 16 inches long, tap two 2.2″ TB connections on one side and 4 1″ engine intake connections on the other side and see what happens. No bends, a cap in each end of the big pipe, 4 flanges and 6 pretty much standard fishmouth pipe welds.

By the way, the sub-throttles can definitely be left in place on this unit. One kinda weird thing is that the fast idle cam arrangement on Buzz’s existing set of TBs is kind of done on these as well, but the cam is connected to the sub-throttles. When the are forced all the way open, the cam engages the main throttle, opening it about 1-2%. It would almost be funny if the IAC stepper function of MegaSquirt could be adapted to run this motor. [note: see this note in the VW Trike blog for the answer to that question – Sluggy] Perhaps someday someone will write some support for them into MegaSquirt. I don’t think I’ll ever had the time!
